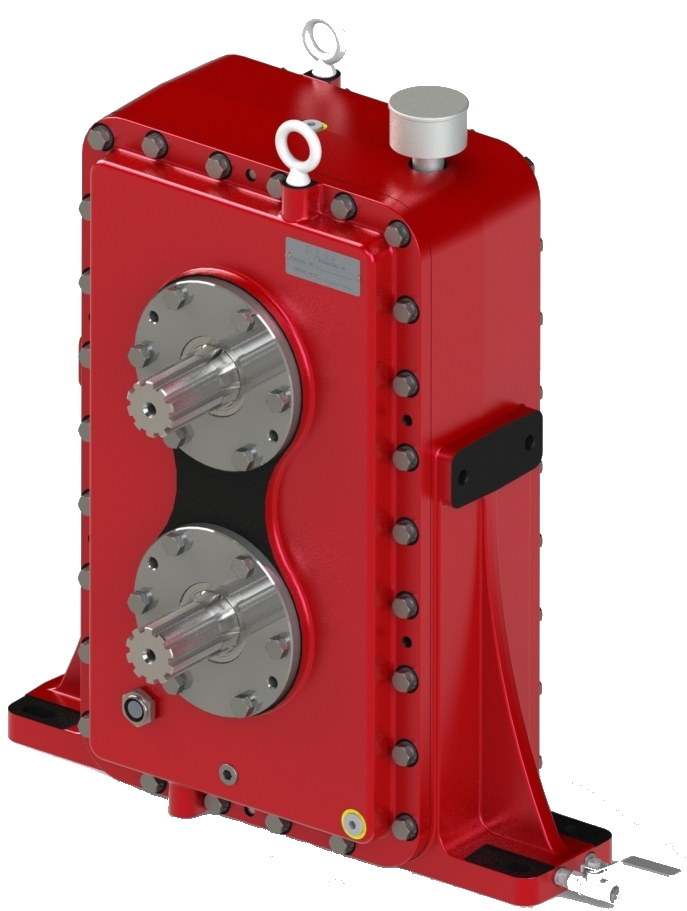

 Test Stand Gearbox

Rj Link’s D333 gearbox was designed for a test stand application that tests crank shafts used in heavy-duty off-road specialty equipment.    The robust gearbox was designed to be mounted in a vertical position to account for space constraints with other existing equipment.

Specifications:

• Output: 450 HP @ 4500 RPM
• Input Speed:  4,500 RPM Max
• Ratio:  1:1
• Rotation:  Anti-Engine – either shaft from each side could be driving or driven
• Lubrication type:  Circulating cooled oil
• Surface finish: Per customer request
• Lube capacity: Approximately 5 quarts
• Approximate weight: 591 lbs w/o oil
