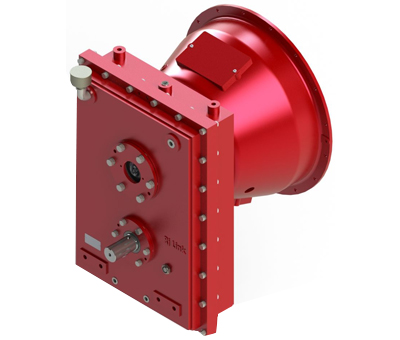

Speed Increaser: Model D253

Features include a fabricated steel housing, various input and output shaft configurations including straight shaft with key or bell housing and input shaft to match appropriate clutch system and with engine rotation. For a similar design mounted horizontally, see Model D257.

Typical Applications

Centrifugal Pumps

Specifications

• Ratios:1 : 1 through 1 : 3.25
• Rotation:Engine
• Max Horsepower:650 HP
• Center Distance:11.5″
• Overall Size:34.5″ H x 24.5″ W (Depth Varies)
• Weight:1,350 lbs approx.
