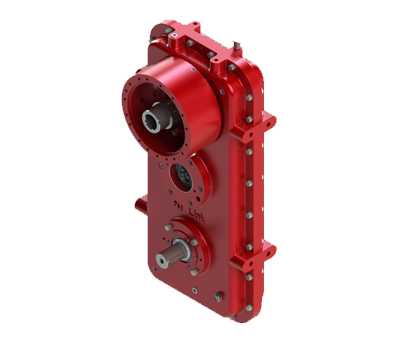

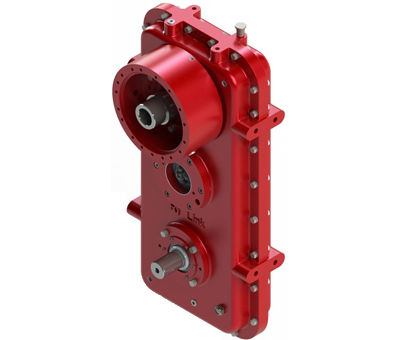

Transfer Case: Model D218

Features include precision ground gears mated to an aluminum housing with stringent noise and space requirements,.  This engine rotation gearbox is an example of extensive development to meet defined parameters.

Typical Applications

Bus

Specifications

• Ratios:1 : 1
• Rotation:Engine
• Max Horsepower:200 HP
• Center Distance:22.3″
• Overall Size:32″H x 16″W x 10″D
• Weight:160 lbs approx.
